JCB JCB 20/925613 Loader hydraulics

www.machinerypartsonline.eu
www.machinerypartsonline.com.au

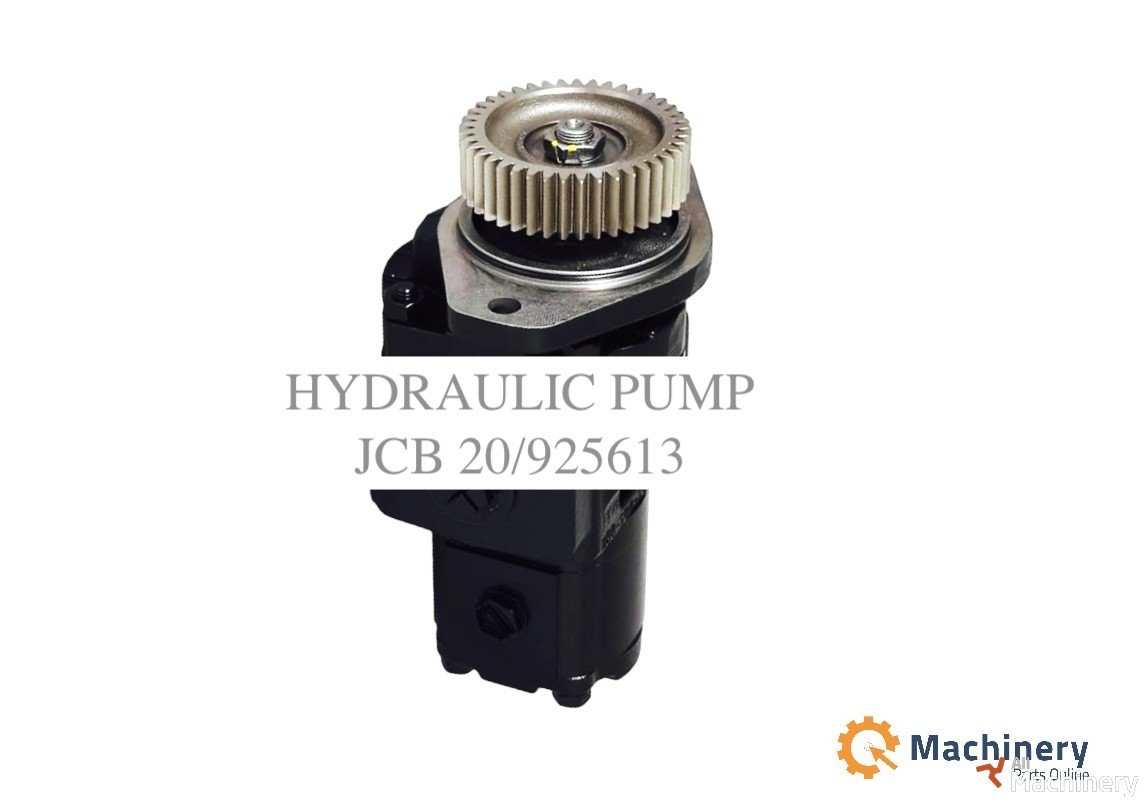

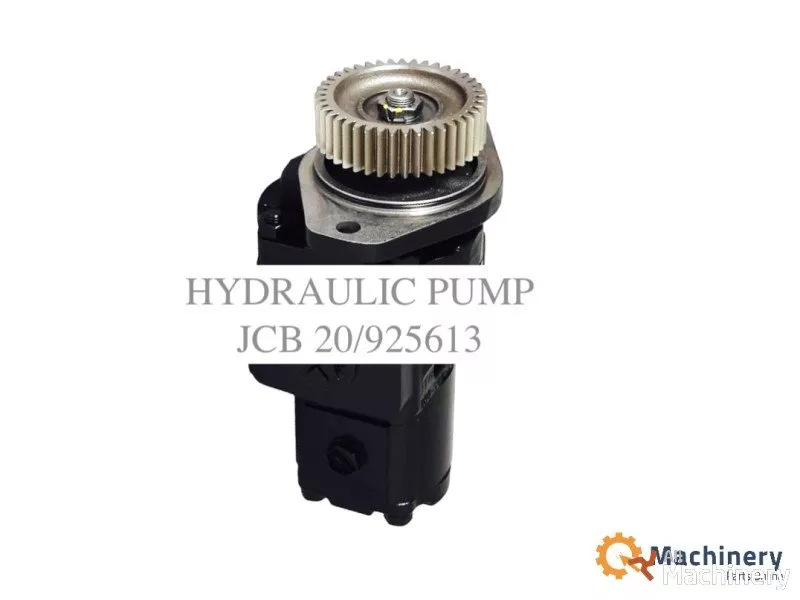

HYDRAULIC PUMP JCB 20/925613

Type of pump:gearpump
Number of elements:3
Type of flange:type G
Diameter of flange mounting holes D1 (mm):14.3
Center distance of mounting holes flange C1 (mm):89.8
Total length of pump L1 (mm):475
Neck diameter D2 (mm):101.5
Type of shaft:type D
Distance from flange to end L2 (mm):46
Diameter of shaft D3 (mm):24.9
Number of splines:15
Direction of rotation:counterclockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type J
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type J
Thread type pressure side of 1st element TA-Pb:3/4 BSP
Position of pressure port 2nd element, only for pump type T POS-CO4:side
Type of connections pressure port 2nd element, only for pump type T TY-COd:type E
Thread type pressure side of 2nd element TA-Pd:7/8 UNF
Flow control valve present:YES
Biggest Thread type valve TA3:7/8 UNF
Second Thread type valve TA4:3/4 UNF
Material of the housing:aluminium-metal
