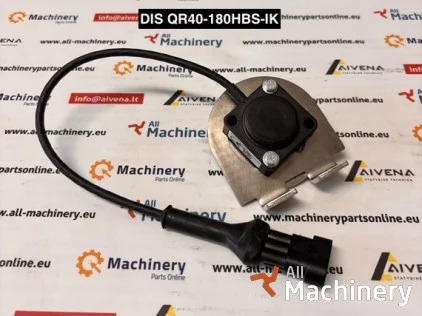

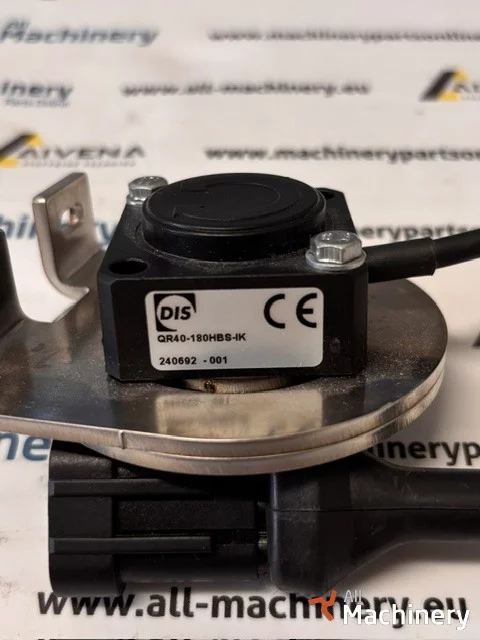

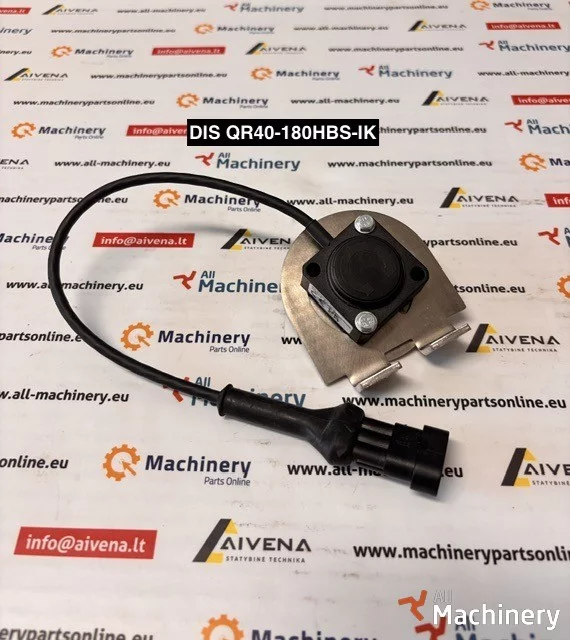

DIS QR40-180HBS-IK Absolute Rotary Encoder – Contactless 4–20 mA Position Sensor
The DIS QR40-180HBS-IK is a high-precision contactless absolute rotary encoder designed for accurate angular position measurement in industrial and mobile applications. It provides a 4–20 mA analog output over a 180° measuring range and features 12-bit resolution (0.09° per step over 360°). The contactless Hall-effect measuring principle eliminates mechanical wear, ensuring exceptional reliability and long service life.
Product Details:
Part Number: QR40-180HBS-IK
Description: Absolute Rotary Encoder (Contactless)
Manufacturer: DIS Sensors
Series: QR40
Sensor Type: Absolute Rotary Encoder
Output Signal: 4–20 mA
Supply Voltage: 10–32 V DC
Measuring Range: 180° (within a 360° rotation)
Function: Measures absolute shaft position and outputs a proportional analog current signal.
Technical Specifications:
Supply Voltage: 10–32 V DC
Current Consumption: ≤25 mA (excluding output current)
Output Signal: 4–20 mA
Resolution: 12-bit over 360°
Sensitivity Error: ±0.5% typical at 20°C
Repeatability: 0.12°
Response Time: <4 ms
Maximum Rotational Speed: 15 rpm
Housing Dimensions: 40 × 40 × 22 mm (excluding shaft)
Shaft: Stainless steel, Ø6 mm, D-type (5 mm flat)
Shaft Length: 18.2 mm

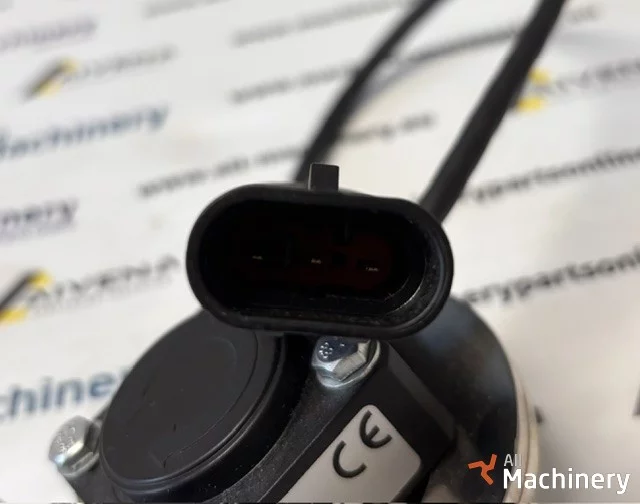

Cable: 2 m PVC cable, 3 × 0.34 mm²
Protection Rating: IP66
Operating Temperature: -25°C to +80°C (fixed cable)
Typical Applications:
The DIS QR40-180HBS-IK is commonly used on:
Scissor lifts
Boom lifts
Telehandlers
Excavators
Agricultural machinery
Wheel loaders
Mobile hydraulic equipment
Industrial automation systems
Steering angle measurement
Boom and outrigger position sensing
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
