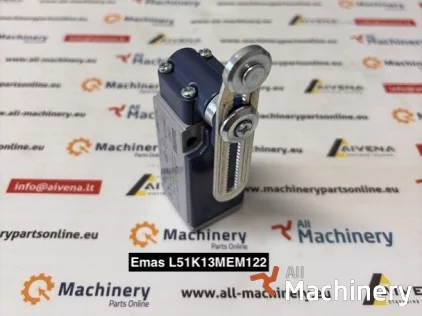

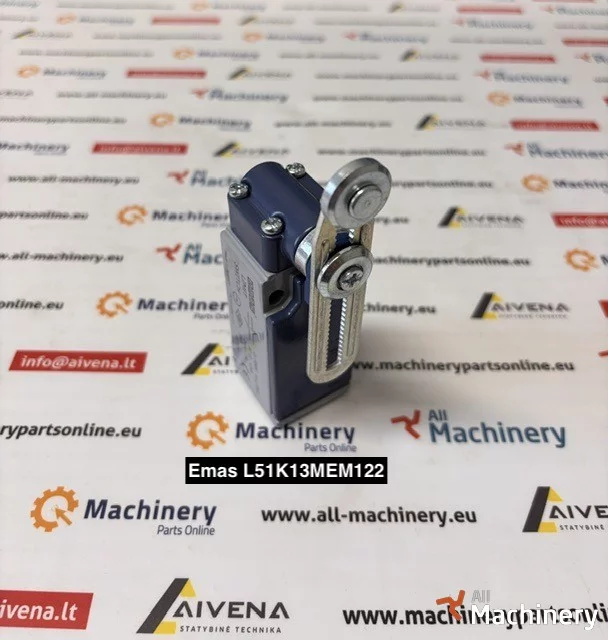

EMAS L51K13MEM122 Limit Switch – Metal Body Adjustable Roller Lever, 1NO+1NC
The EMAS L51K13MEM122 is a heavy-duty snap-action limit switch featuring a metal adjustable roller lever with an 18 mm metal roller. Part of the EMAS L51 Series, it is designed for reliable position detection and end-of-travel control in industrial automation, construction equipment, machine tools, conveyors, and material handling systems. The rugged metal housing and IP65 protection rating make it suitable for demanding industrial environments.
Product Details:

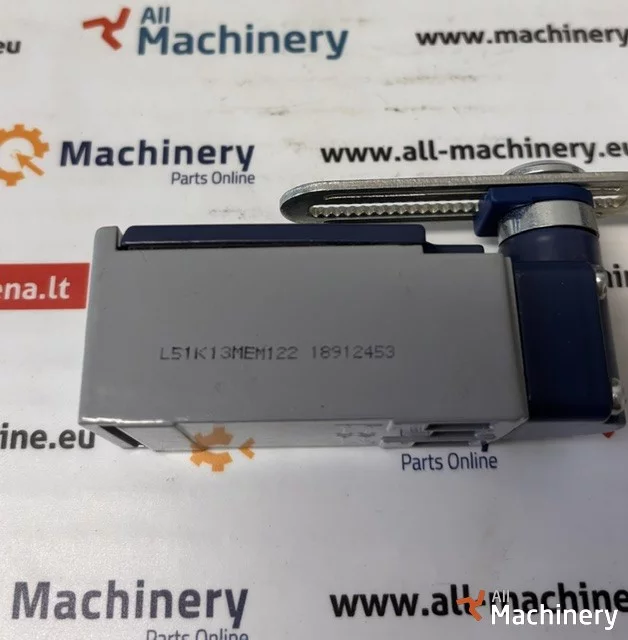

Part Number: L51K13MEM122
Description: Limit Switch with Adjustable Roller Lever
Type: Snap-Action Limit Switch
Manufacturer: EMAS
Series: L51 Metal Body
Actuator: Adjustable roller arm
Roller Material: Metal
Roller Diameter: 18 mm
Contacts: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
Function: Detects the position or movement of machine components and provides reliable electrical switching for control and safety circuits.
Technical Specifications:
Operating Voltage: 240 VAC
Rated Current: 3 A (AC-15)
Contact Configuration: 1NO + 1NC
Mechanical Life: 10,000,000 operations
Electrical Life: 1,000,000 operations
Protection Rating: IP65
Operating Temperature: -25°C to +80°C
Insulation Voltage (Ui): 300 V
Impulse Withstand Voltage (Uimp): 2.5 kV
Cable Entry: PG13.5 or M20 × 1.5
Contact Material: Silver Nickel (AgNi)
Typical Applications:
The EMAS L51K13MEM122 is commonly installed on:
Industrial production machinery
Conveyor systems
Packaging equipment
Construction machinery
Material handling equipment
Machine tools
Automated manufacturing lines
Safety and positioning systems
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
