Type of pump gearpump
Number of elements 1
Type of flange type G
Diameter of flange mounting holes D1 (mm) 8.8
Center distance of mounting holes C1 (mm) 50.8
Total length of pump L1 (mm) 96
Neck diameter D2 (mm) 45.2
Type of shaft type I
Diameter of shaft D3 (mm) 15.9
Key (way) width W (mm) 11
Thread type (on shaft) TA2 1/4 UNC
Direction of rotation counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type J
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing metal

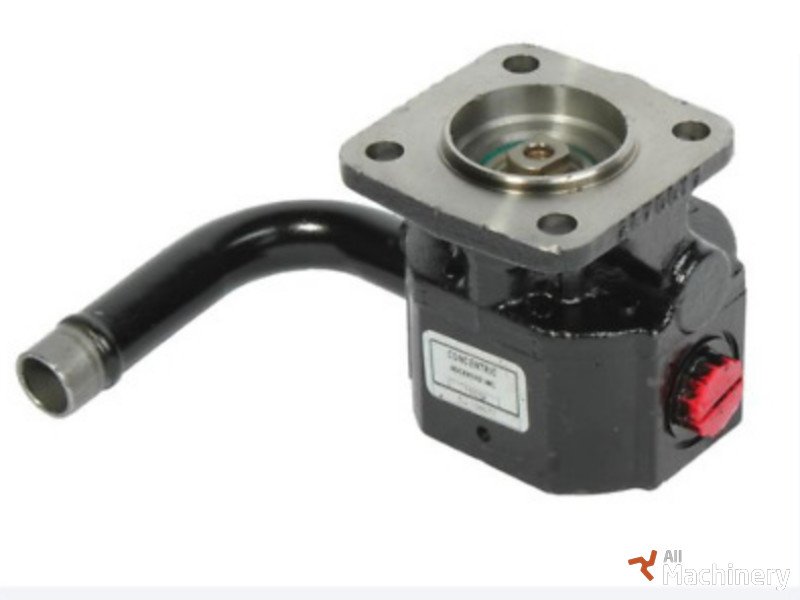

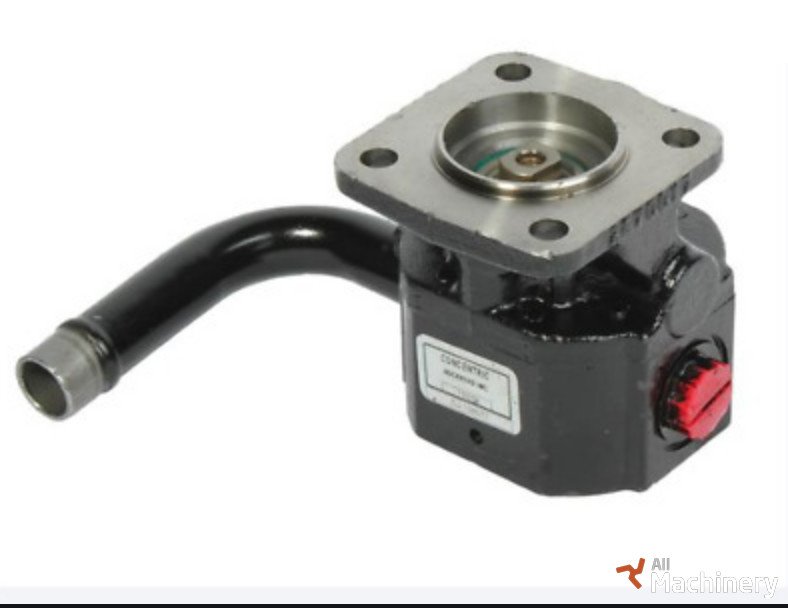

Hydraulic pump Skyjack 106587
Type of pump gearpump
Number of elements 1
Type of flange type G
Diameter of flange mounting holes D1 (mm) 8.8
Center distance of mounting holes C1 (mm) 50.8
Total length of pump L1 (mm) 96
Neck diameter D2 (mm) 45.2
Type of shaft type I
Diameter of shaft D3 (mm) 15.9
Key (way) width W (mm) 11
Thread type (on shaft) TA2 1/4 UNC
Direction of rotation counter clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type J
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing metal
