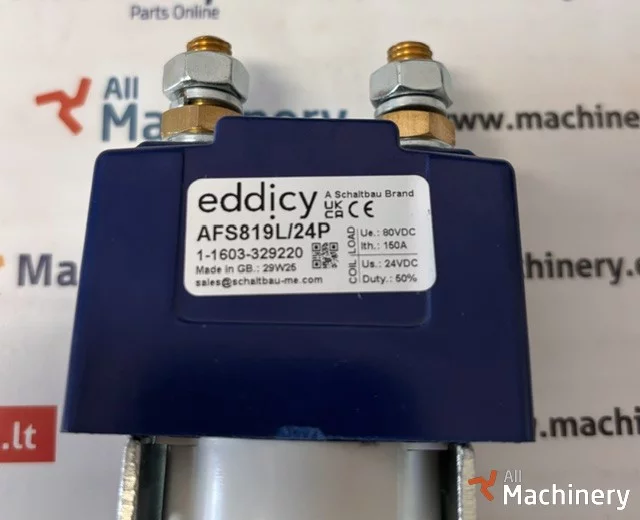

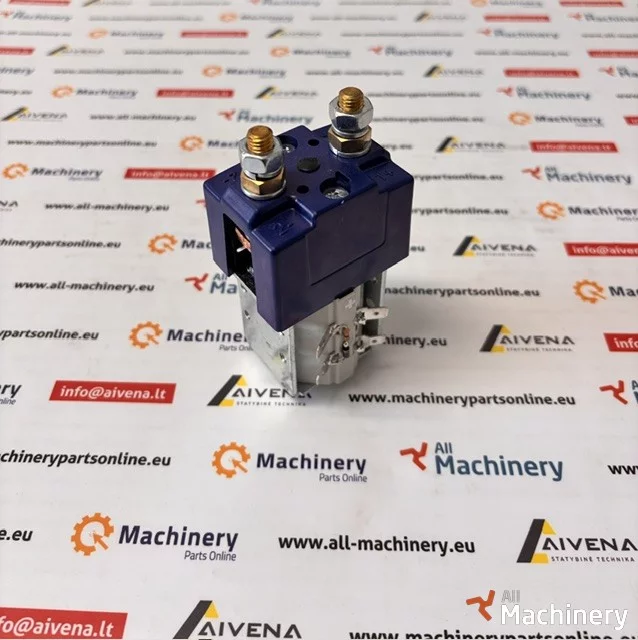

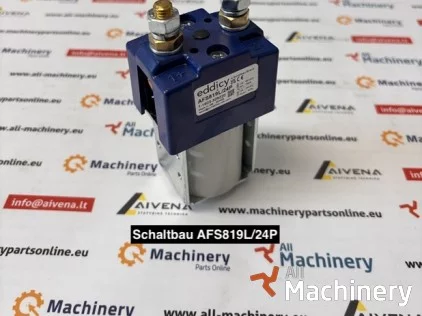

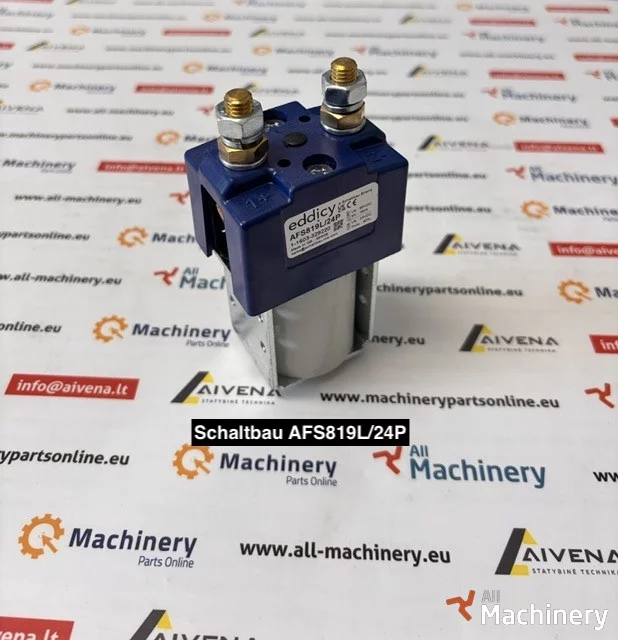

Schaltbau AFS819L/24P Contactor – 24V DC Latching Battery Contactor
The Schaltbau AFS819L/24P is a genuine OEM single-pole latching DC contactor designed for heavy-duty battery-powered industrial vehicles. Featuring a 24V DC latching coil and a 150A continuous thermal current rating, this contactor is commonly used as a main battery contactor, motor contactor, or power isolation contactor in electric forklifts, aerial work platforms, AGVs, and other electric industrial equipment. Unlike conventional contactors, the latching design consumes power only during switching, helping to reduce battery drain.
Product Details:
Part Number: AFS819L/24P
Description: Latching Battery Contactor
Type: SPST-NO DC Contactor (Single Pole, Normally Open)
Manufacturer: Schaltbau
Series: AFS819L
Coil Voltage: 24V DC
Continuous Thermal Current: 150A
Function: Switches the main DC battery circuit while minimizing energy consumption through a latching mechanism.
Technical Specifications:
Coil Voltage: 24V DC
Contact Configuration: SPST-NO (Normally Open)
Continuous Thermal Current: 150A
Maximum System Voltage: 48V DC (96V DC with blowout magnets, depending on configuration)
Main Terminals: M8 studs
Coil Connections: 6.3 mm blade terminals
Mechanical Endurance: More than 1,000,000 operating cycles
Protection: Optional auxiliary contacts, coil suppression, and blowout magnets available depending on configuration.
Typical Applications:
The Schaltbau AFS819L/24P is widely used in:
Electric forklifts
Electric pallet trucks
Reach trucks
Scissor lifts
Boom lifts
Automated Guided Vehicles (AGVs)
Industrial cleaning machines
Battery-powered utility vehicles
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
