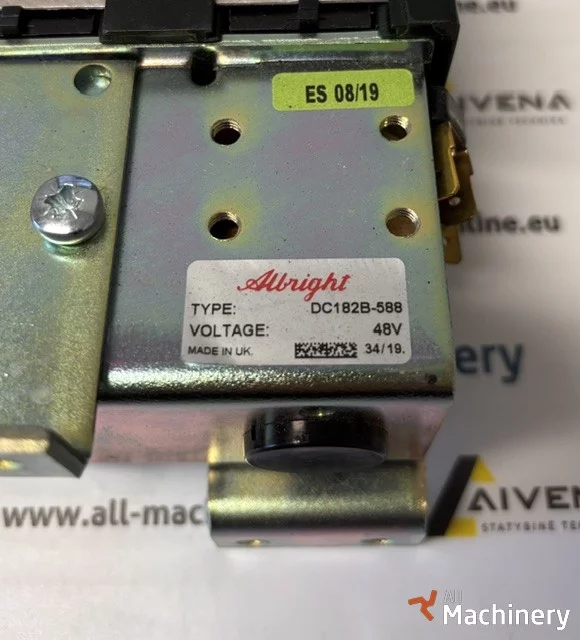

The Albright DC182B-588 is a genuine OEM 48V DC motor-reversing solenoid contactor designed for controlling the forward and reverse operation of DC traction motors in battery-powered industrial vehicles. Built as a monoblock double-pole reversing contactor, it incorporates an internal electrical interlock (failsafe) that prevents both forward and reverse coils from being energized simultaneously, protecting the motor and electrical system. The "B" version includes magnetic blowouts, enabling reliable switching of higher-voltage DC circuits up to 96V DC.
Product Details:
Part Number: DC182B-588
Description: Motor-Reversing Solenoid Contactor
Type: Double-Pole Motor Reversing DC Contactor
Manufacturer: Albright International
Series: DC182B
Coil Voltage: 48V DC
Application: DC traction motor forward/reverse control
Function: Reverses motor polarity to control the direction of rotation of DC motors in electric vehicles and industrial equipment.
Technical Specifications:
Coil Voltage: 48V DC
Continuous Thermal Current: 150A
30% Duty Current: 275A
40% Duty Current: 235A
50% Duty Current: 210A
60% Duty Current: 195A
70% Duty Current: 180A
Maximum Recommended Voltage: Up to 96V DC (B version with magnetic blowouts)
Mechanical Life: Over 5 million switching cycles
Main Contacts: Double-break silver alloy contacts
Construction: Monoblock motor-reversing contactor
Typical Applications:
The Albright DC182B-588 is commonly installed on:
Electric forklifts
Electric scissor lifts
Boom lifts
Tow tractors
Airport ground support equipment
Electric utility vehicles
AGVs (Automated Guided Vehicles)
Battery-powered industrial machinery
It is also used as a replacement for JLG Part Number 7022002 on selected JLG aerial work platforms.
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
