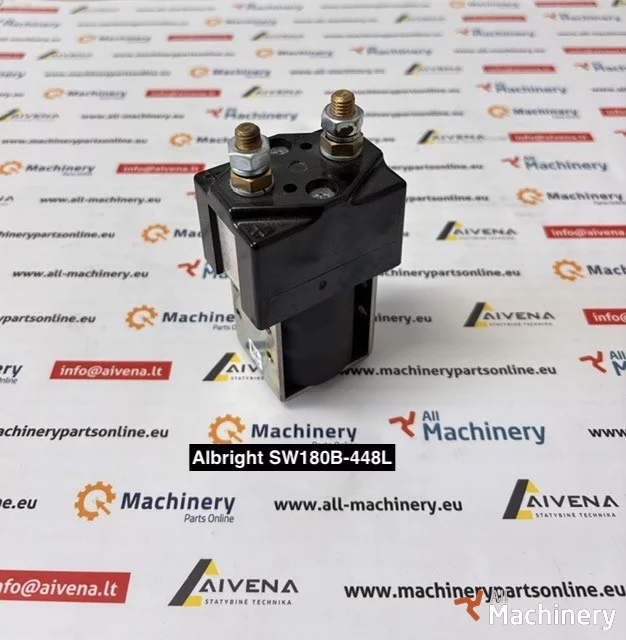

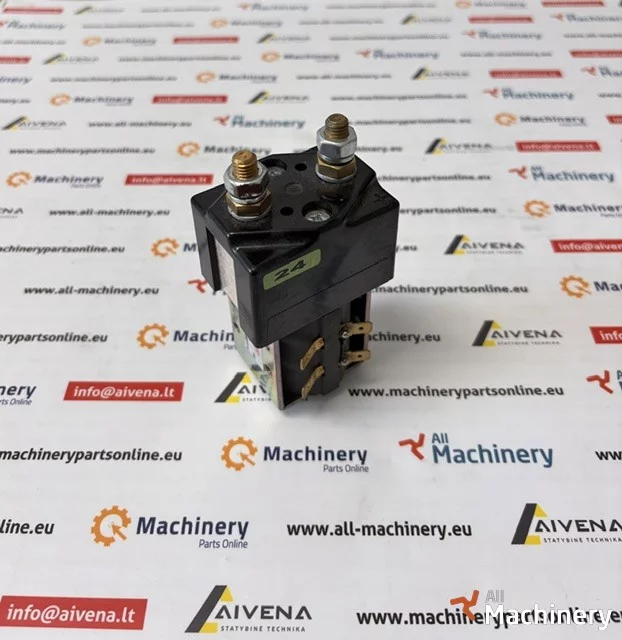

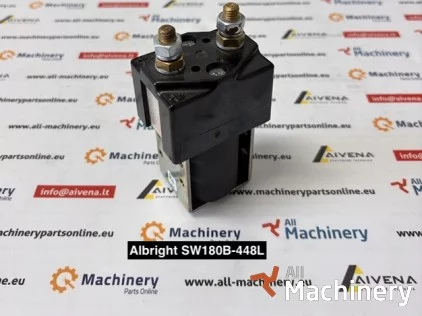

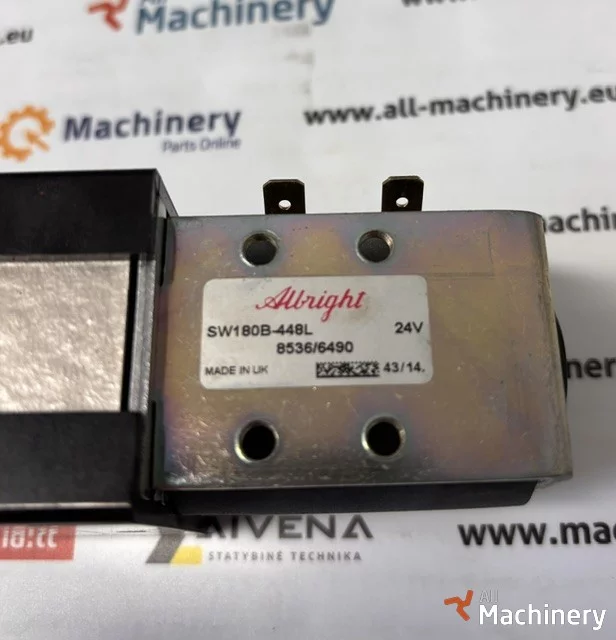

Albright SW180B-448L Single-Acting Contactor – 24V DC Heavy-Duty Contactor
The Albright SW180B-448L is a genuine OEM single-acting (SPST-NO) DC contactor with a 24V DC intermittent-duty coil, specifically designed for switching high-current DC loads in industrial and mobile equipment. The "B" version includes magnetic blowouts for superior arc suppression, while the "L" version features large silver alloy contact tips for improved durability and longer service life. It is commonly used for hydraulic pump motors, battery isolation, and auxiliary power circuits in electric vehicles and aerial work platforms.
Product Details:
Part Number: SW180B-448L
Description: Single-Acting DC Contactor
Type: SPST-NO (Single Pole, Single Throw – Normally Open)
Manufacturer: Albright International
Series: SW180B-L
Coil Voltage: 24V DC (Intermittent Duty)
Function: Controls high-current DC circuits for motors, hydraulic pumps, and battery-powered equipment.
Technical Specifications:
Coil Voltage: 24V DC
Coil Type: Intermittent Duty (INT)
Contact Configuration: SPST-NO
Continuous Thermal Current: 150A
30% Duty Current: 275A
Maximum Recommended Voltage: Up to 96V DC (with magnetic blowouts)
Mechanical Life: More than 5 million switching cycles
Main Terminals: M8 studs
Coil Connections: 6.3 mm blade terminals
Mounting: Horizontal or vertical (terminals facing upwards when mounted vertically)
Typical Applications:
The Albright SW180B-448L is widely used on:
Electric forklifts
Scissor lifts
Boom lifts
Electric pallet trucks
Tow tractors
Utility vehicles
Floor scrubbers and sweepers
Hydraulic power packs
Battery-powered industrial machinery
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
