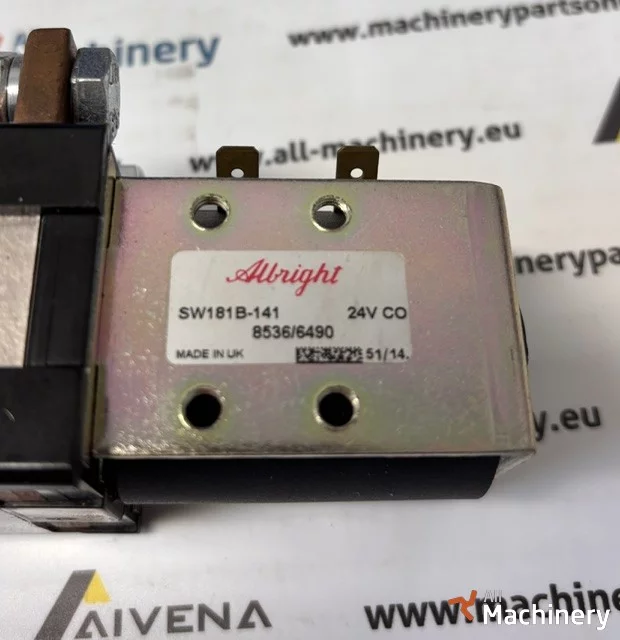

Albright SW181B-141 Contactor – Heavy-Duty DC Reversing Contactor
The Albright SW181B-141 is a genuine OEM Single Pole Double Throw (SPDT) DC contactor designed for switching DC motors and high-current battery circuits. It is widely used in electric forklifts, aerial work platforms, pallet trucks, utility vehicles, golf carts, and industrial electric vehicles. The "B" designation indicates that this version is fitted with magnetic blowouts, allowing higher DC voltage switching capability.
Product Details:
Part Number: SW181B-141
Description: DC Contactor
Type: Single Pole Double Throw (SPDT) Contactor
Manufacturer: Albright International
Series: SW181
Application: DC motor control and battery-powered industrial equipment
Function: Switches high-current DC loads for motor reversing, battery isolation, and power distribution.
Technical Specifications:
Contact Configuration: SPDT (Normally Open / Normally Closed)
Continuous Thermal Current: 150 A
30% Duty Current: 275 A
Mechanical Life: Over 5 million operations
Maximum DC Voltage (with magnetic blowouts): Up to 96 V DC
Main Terminals: M8 studs
Coil Connections: 6.3 mm blade terminals
Typical Applications:
The Albright SW181B-141 is commonly installed on:
Electric forklifts
Electric pallet trucks
Scissor lifts
Boom lifts
Tow tractors
Golf carts
Utility vehicles
Battery-powered industrial machinery
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
