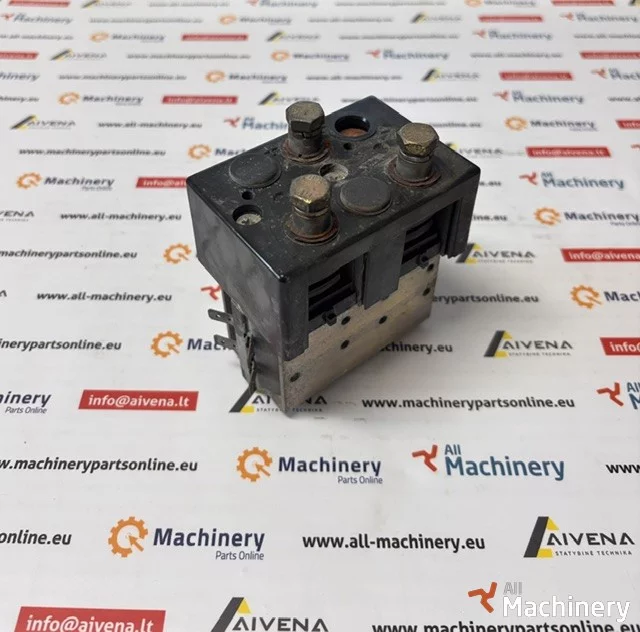

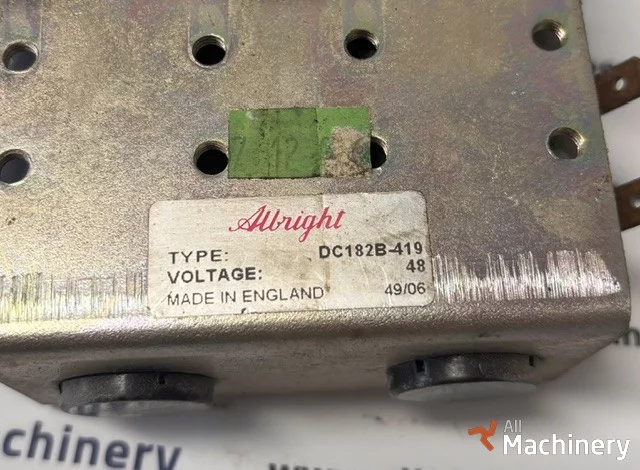

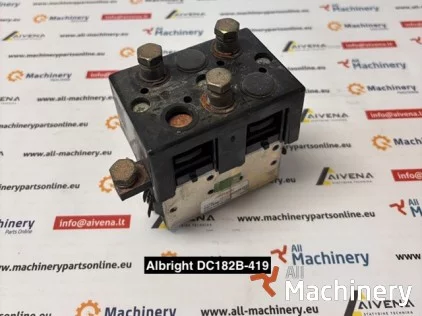

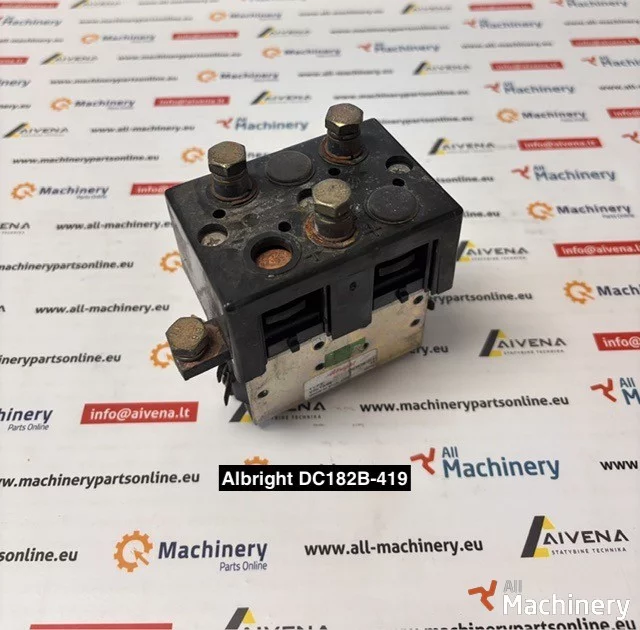

Albright DC182B-419 – 48V DC Intermittent Motor-Reversing Solenoid Contactor
The Albright DC182B-419 is a genuine OEM 48V DC motor-reversing solenoid contactor designed for controlling the forward and reverse operation of DC traction motors in battery-powered industrial vehicles and mobile equipment. Part of the Albright DC182B Series, this monoblock reversing contactor features magnetic blowouts for improved DC arc suppression and an integrated fail-safe electrical interlock that prevents both forward and reverse coils from being energized simultaneously. It is ideal for demanding applications requiring reliable motor direction control.
Product Details:
Part Number: DC182B-419
Description: Motor-Reversing Solenoid Contactor
Type: Monoblock DC Motor Reversing Contactor
Manufacturer: Albright International
Series: DC182B
Coil Voltage: 48V DC (Intermittent Duty)
Function: Reverses the polarity supplied to a DC motor, enabling forward and reverse operation while protecting the electrical system.
Technical Specifications:
Coil Voltage: 48V DC
Coil Duty: Intermittent
Continuous Thermal Current: 150A
30% Duty Current: 275A
40% Duty Current: 235A
50% Duty Current: 210A
60% Duty Current: 195A
70% Duty Current: 180A
Maximum Recommended Contact Voltage: 96V DC (B version with magnetic blowouts)
Mechanical Life: Over 5 million switching cycles
Main Contacts: Double-break silver alloy contacts
Operating Temperature: -40°C to +60°C
Typical Applications:
The Albright DC182B-419 is commonly used on:
Electric forklifts
Electric scissor lifts
Boom lifts
Electric pallet trucks
Tow tractors
Airport ground support equipment
Utility vehicles
Battery-powered industrial machinery
Condition: Used, fully tested, in good working condition
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
