Albright DC66-14P – 24V DC Motor Reversing Solenoid Contactor
The Albright DC66-14P is a genuine OEM 24V DC motor reversing solenoid contactor designed for controlling the forward and reverse operation of permanent magnet DC motors in compact battery-powered equipment. It belongs to the Albright DC66P Series, a compact monoblock reversing contactor with an integrated fail-safe interlock that prevents simultaneous energizing of both direction coils. The DC66P is sealed to IP67, making it suitable for demanding outdoor and industrial applications.
Product Details:

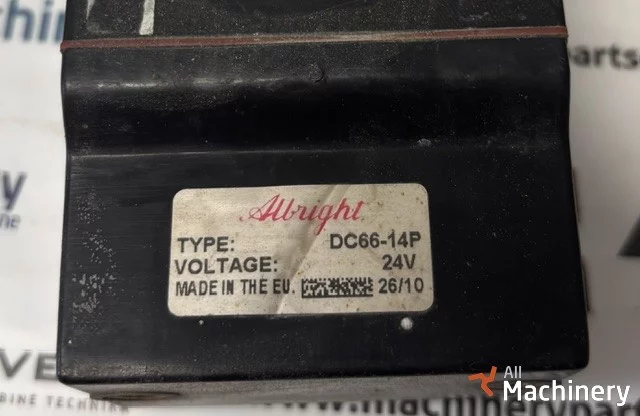

Part Number: DC66-14P
Description: Motor Reversing Solenoid Contactor
Type: Monoblock DC Motor Reversing Contactor
Manufacturer: Albright International
Series: DC66P
Coil Voltage: 24V DC
Protection Rating: IP67
Function: Reverses the polarity supplied to a DC motor, allowing forward and reverse motor operation.
Technical Specifications:
Coil Voltage: 24V DC
Continuous Thermal Current: 80A
30% Duty Current: 145A
40% Duty Current: 125A
50% Duty Current: 115A
60% Duty Current: 105A
70% Duty Current: 95A
Maximum Recommended Contact Voltage: 48V DC
Mechanical Life: More than 3,000,000 switching cycles
Main Terminals: M6 studs
Coil Connections: 6.3 mm blade terminals
Ingress Protection: IP67
Typical Applications:
The Albright DC66-14P is commonly used on:
Electric scissor lifts
Electric boom lifts
Electric forklifts
Battery-powered winches
Vehicle-mounted cranes
Small electric utility vehicles
Electric pallet trucks
Industrial DC motor drive systems
It is also commonly used as the reversing contactor on JLG Toucan Duo aerial work platforms.
Condition: Used, fully tested, in good working condition
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
