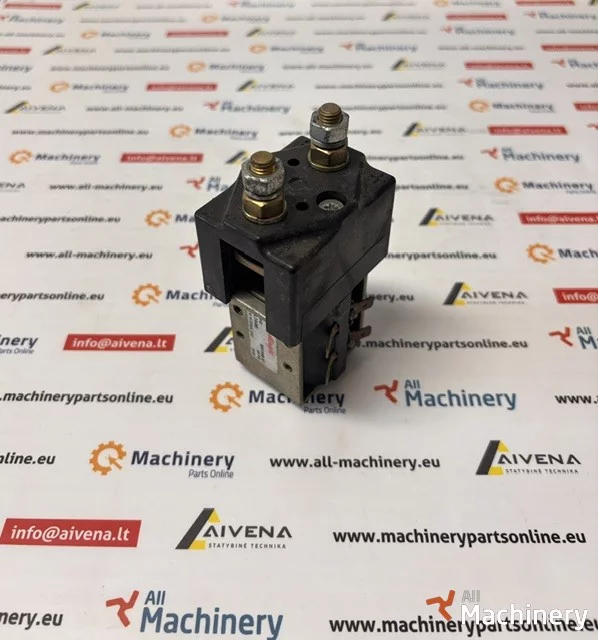

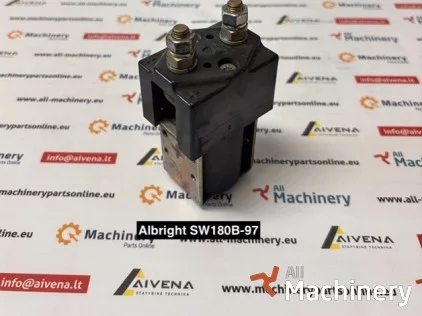

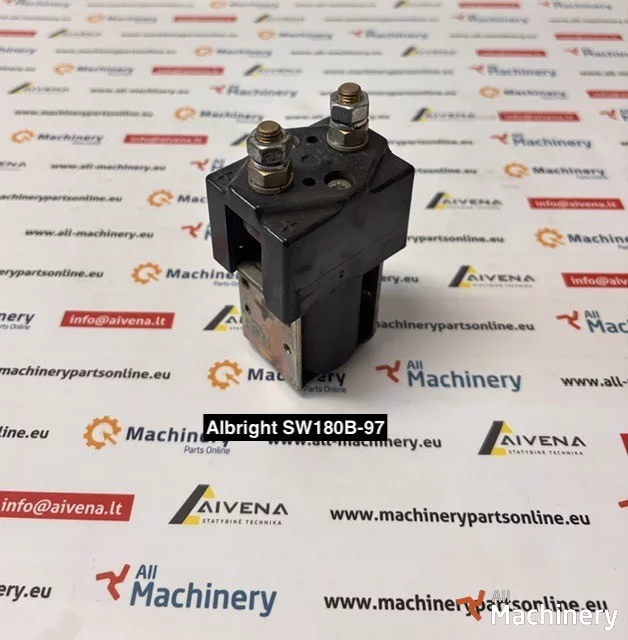

Albright SW180B-97 Single-Acting Solenoid Contactor – 24V DC Heavy-Duty Contactor
The Albright SW180B-97 is a genuine OEM single-acting DC solenoid contactor designed for switching high-current DC loads in battery-powered industrial equipment. It belongs to the Albright SW180B Series, featuring a Single Pole Single Throw Normally Open (SPST-NO) configuration with magnetic blowouts for enhanced DC arc suppression. The -97 version is fitted with a 24V DC coil, making it suitable for hydraulic pump motors, battery circuits, and auxiliary power applications.
Product Details:
Part Number: SW180B-97
Description: Single-Acting Solenoid Contactor
Type: SPST-NO (Single Pole, Single Throw – Normally Open)
Manufacturer: Albright International
Series: SW180B
Coil Voltage: 24V DC
Function: Controls high-current DC circuits for electric motors, hydraulic pumps, battery disconnect systems, and industrial equipment.
Technical Specifications:
Coil Voltage: 24V DC
Contact Configuration: SPST-NO
Continuous Thermal Current: 150A
30% Duty Current: 275A
40% Duty Current: 235A
50% Duty Current: 210A
60% Duty Current: 195A
70% Duty Current: 180A
Maximum Recommended Contact Voltage: Up to 96V DC (with magnetic blowouts)
Mechanical Life: More than 5 million switching cycles
Main Terminals: M8 studs
Coil Connections: 6.3 mm blade terminals
Typical Applications:
The Albright SW180B-97 is commonly installed on:
Electric forklifts
Scissor lifts
Boom lifts
Electric pallet trucks
Hydraulic power packs
Tow tractors
Utility vehicles
Floor scrubbers and sweepers
Battery-powered industrial machinery
Condition: Used, fully tested, in good working condition
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
